Robotic Tower Parking

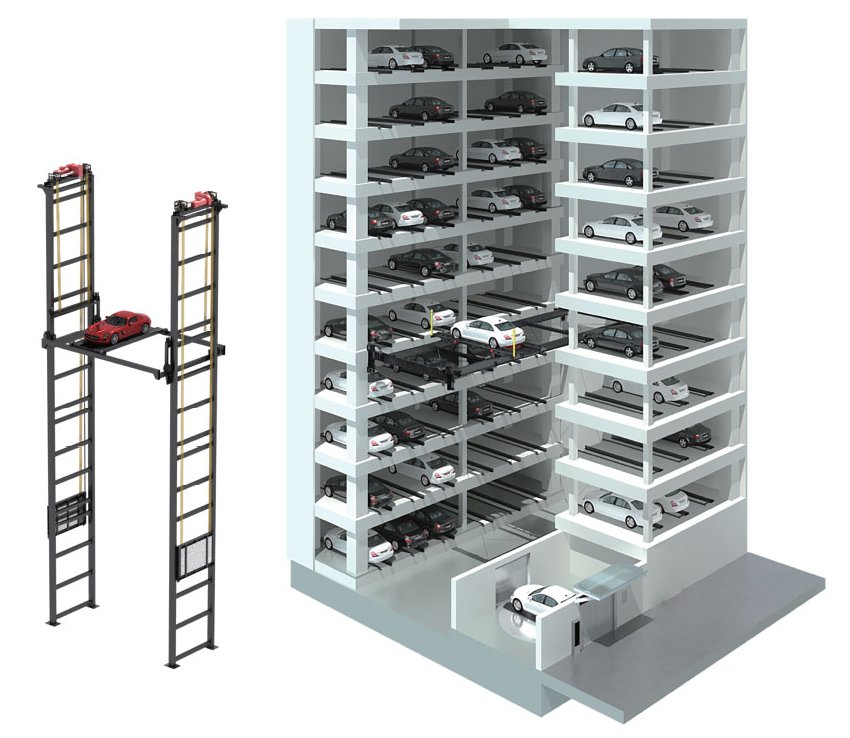

Lootah Robotic Tower Parking - LPS 600 A

  • Robot used for picking of cars
  • Car lift is equipped with both horizontal and vertical movements
  • Parking and Retrieval of cars at ground level
  • Smooth traffic flow can be designed according to site conditions
  • Steel Structure / RCC Structure can be used

Features

  • Fully Automated Parking System
  • Fast and safe
  • Average Cycle time of 90 sec
  • Parking Guidance in each parking room
  • Turntable can be provided for easy drive out

Technical Parameters

Lifting Motor22.0 / 30.0 KW
Lifting speed50-80 m/minute
Carrier Speed30-50 m/minute
Turn Table Speed2 RPM
OperationTouch Screen + RFID card
Power SupplyAC 400 V / 50 Hz, Three Phase, 5 Wire
Entry / ExitAuto Doors

Car Dimensions

Length (mm)5200
Width (mm)2200
Height (mm)2000
Weight (kg)2300

Note: Customized design according to car sizes available
