- Double the Parking Space
- Widely used in Villas and Valet Parking areas

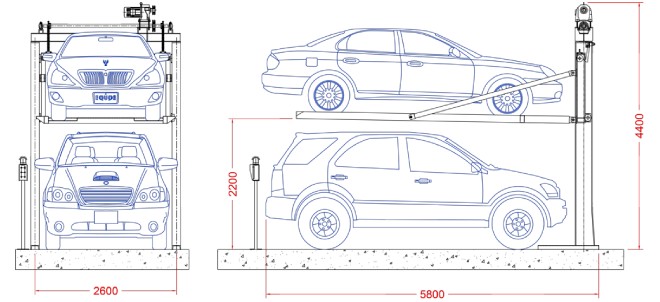

- 2 Post (Cantilever) type
Features
- Easy to Install and Operate
- Safety is ensured through Sensors
- Customized design according to space availability and car sizes
- Anti Corrosive Pallets
- Semi Automated System
Technical Parameters
Lifting Motor | 2.2 / 3.7 KW |
Lifting speed | 4.0 m/minute |
Drive | Chain / Wire Rope Drive |
Operation | Push Button |
Power Supply | AC 400 V / 50 Hz, Three Phase, 5 Wire |
Safety System | Photo Electric Sensors |
Car Dimensions
Length (mm) | 5200 |
Width (mm) | 2200 |
Height (mm) | 2000 |
Weight (kg) | 2300 |
Note: Customized design according to car sizes available
- Double the Parking Space
- Widely used in Villas and Valet Parking areas

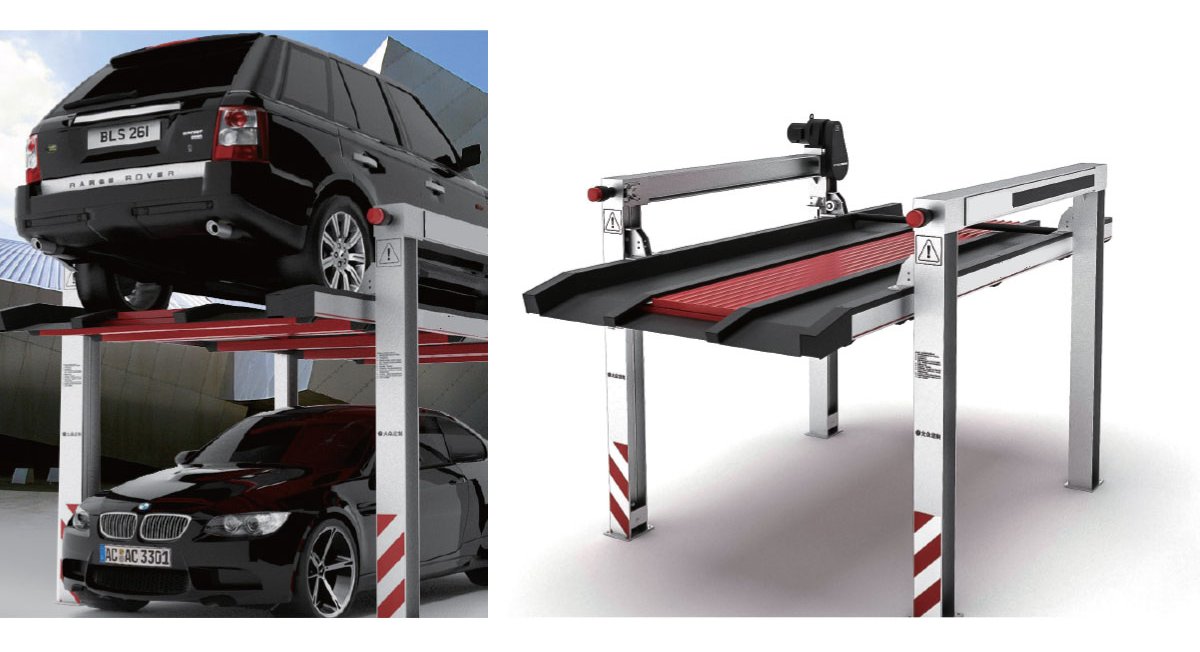

- 4 post Type
Features
- Easy to Install and Operate
- Safety is ensured through Sensors
- Customized design according to space availability and car sizes
- Anti Corrosive Pallets
- Semi Automated System
Technical Parameters
Lifting Motor | 2.2 / 3.7 KW |
Lifting speed | 4.0 m/minute |
Drive | Chain / Wire Rope Drive |
Operation | Push Button |
Power Supply | AC 400 V / 50 Hz, Three Phase, 5 Wire |
Safety System | Photo Electric Sensors |
Car Dimensions
Length (mm) | 5200 |
Width (mm) | 2200 |
Height (mm) | 2000 |
Weight (kg) | 2300 |
Note: Customized design according to car sizes available

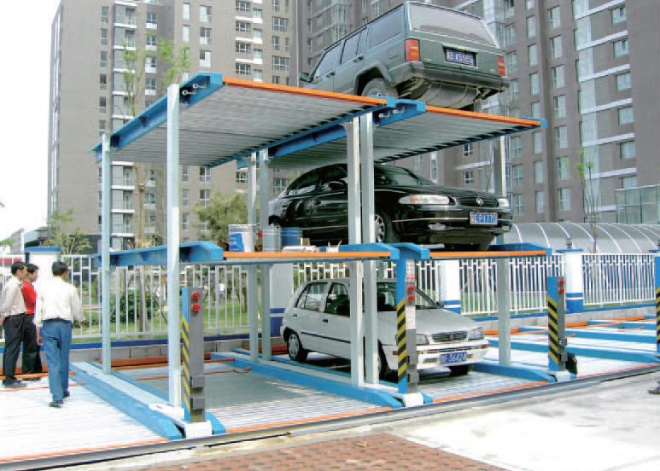

- Saves space for ramps to next basement level features
- Parking level Pallets sliding horizontally
- Lower level Pallets can be ascended and descended
- Suitable for buildings with single basement
- Maximum space utilization
Features
- Multi Channels Safety protection
- Anti Dropping Protection
- Anti-Crashing and Overloading protection
- Easy Maintenance
Technical Parameters
Lifting Motor | 2.2 / 3.7 KW |
Sliding Motor | 0.37 KW |
Lifting speed | 4.0 m/minute |
Sliding speed | 8.0 m/minute |
Drive | Chain Drive |
Operation | Touch Screen + Push Button |
Power Supply | AC 400 V / 50 Hz (Three Phase, 5 Wire) |
Safety System | Photo Electric Sensors |
Car Dimensions
Length (mm) | 5200 |
Width (mm) | 2200 |
Height (mm) | 2000 |
Weight (Kg) | 2300 |
Note: Customized design according to car sizes available
