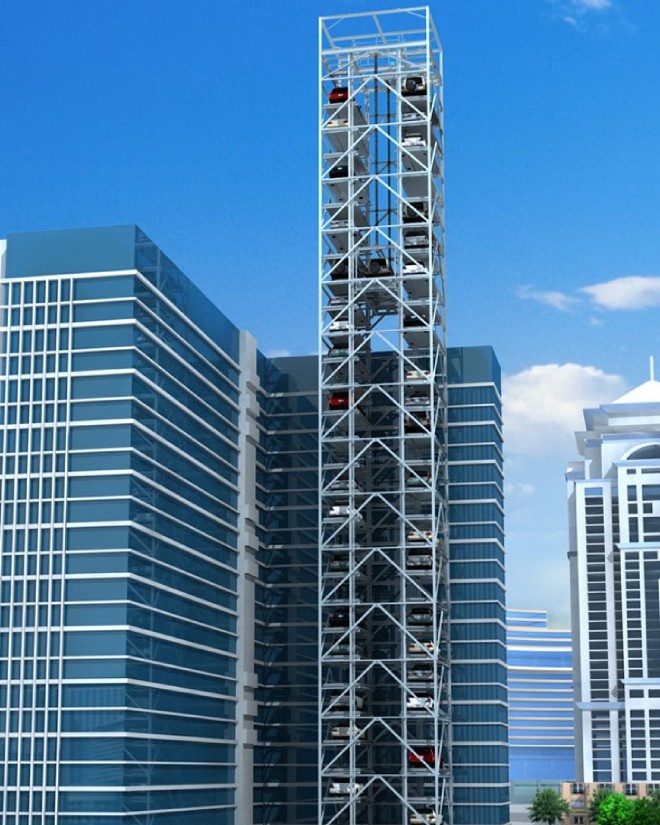

Tower Parking

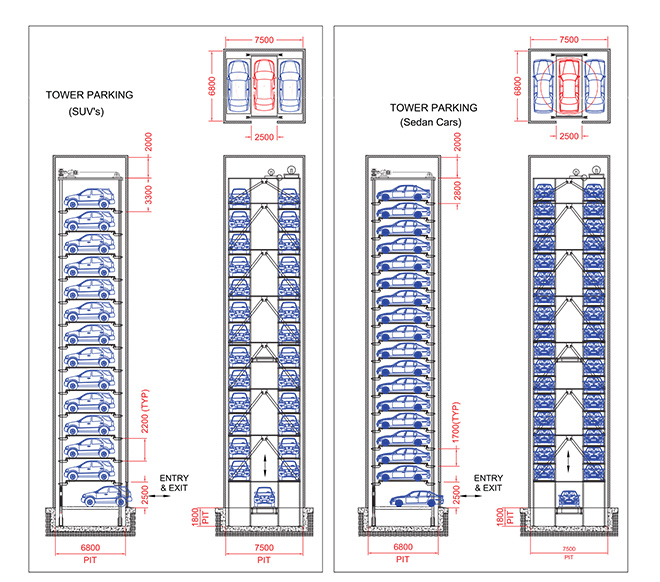

Lootah Tower Parking With Pallets - LSPS 500 A

  • Floor Space of 8 X 7 Mtrs required for parking 40 to 50 cars
  • Pallets are used for parking of Cars
  • Parking / Retrieving of all cars shall be at Ground level.
  • This system can be used for above ground for a height of 50 Mtrs
  • Centre Part of the system is used for vertical movement of cars
  • Both sides of Tower are used for Parking of cars

Features

  • Fully Automated Parking System
  • Car is directly parked on Car Lift
  • Maximum utilization of vertical space for parking
  • No ramps required, car is vertically lifted up and parked on sides
  • Safe and Fast
  • Turn table can be provided for easy drive out

Technical Parameters

Lifting Motor22.0 / 30.0 KW
Lifting speed50-60 m/minute
Turn Table Speed2 RPM
OperationTouch Screen + RFID card
Power SupplyAC 400 V / 50 Hz (Three Phase, 5 Wire)
Entry / ExitAuto Doors

Car Dimensions

Length (mm)5200
Width (mm)2200
Height (mm)2000
Weight (kg)2300

Note: Customized design according to car sizes available

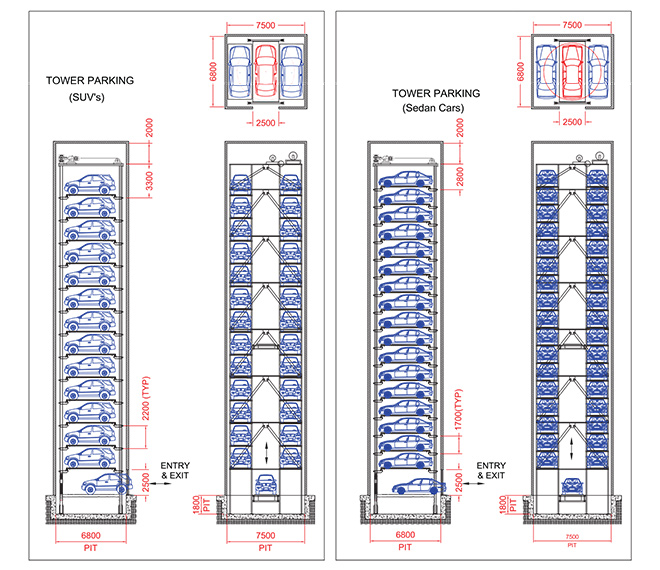

Lootah Tower Parking With Comb Frame - LSPS 500 C

  • Floor Space of 8 X 7 Mtrs required for parking 40 to 50 cars

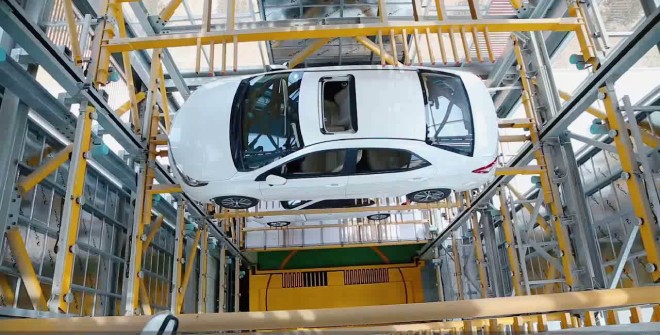

  • No Pallets are used, Comb Frames used for Parking of Cars
  • Parking / Retrieving of all cars shall be at Ground level.
  • This system can be used for above ground for a height of 50 Mtrs
  • Centre Part of the system is used for vertical movement of cars
  • Both sides of Tower are used for Parking of cars

Features

  • Fully Automated Parking System
  • Car is directly parked on Car Lift
  • Maximum utilization of vertical space for parking
  • No ramps required, car is vertically lifted up and parked on sides

Technical Parameters

Lifting Motor22.0 / 30.0 KW
Lifting speed50-60 m/minute
Turn Table Speed2 RPM
OperationTouch Screen + RFID card
Power SupplyAC 400 V / 50 Hz (Three Phase, 5 Wire)
Entry / ExitAuto Doors

Car Dimensions

Length (mm)5200
Width (mm)2200
Height (mm)2000
Weight (kg)2300

Note: Customized design according to car sizes available
