Shuttle Parking

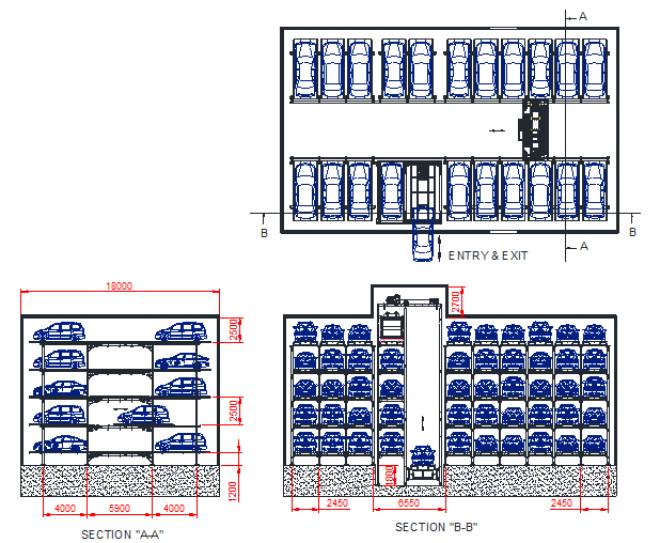

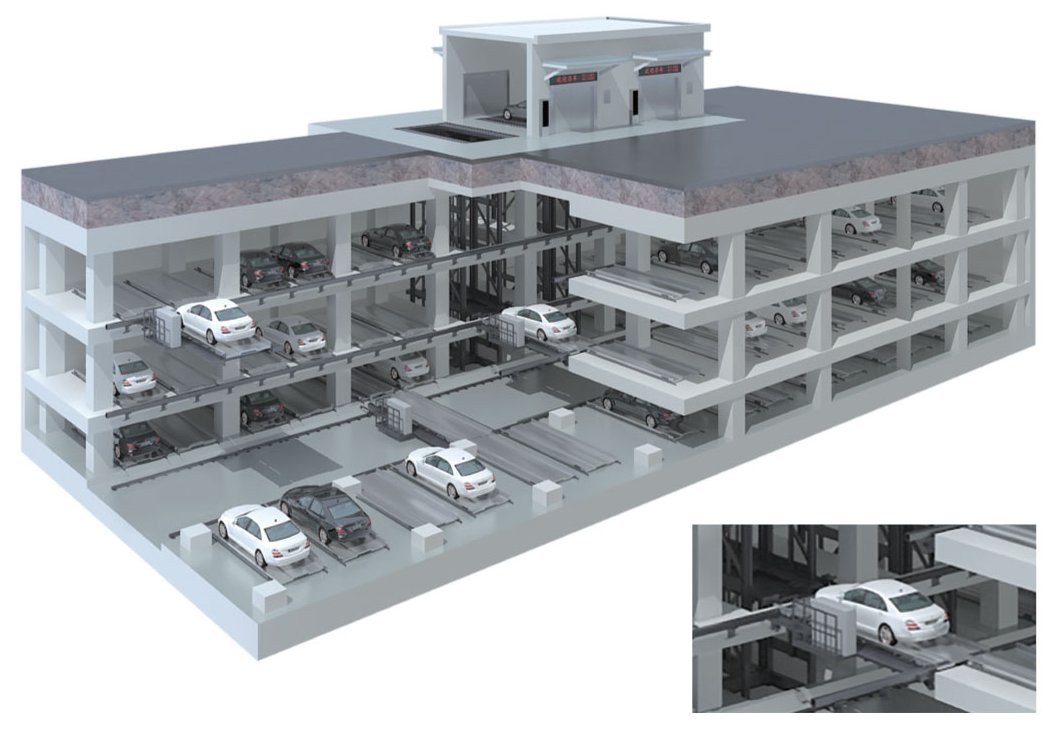

Lootah Shuttle Parking With Pallets - LSPS 300 A

  • Pallets used for transfer of Cars
  • Pallets along with the Car transferred to Car Lifts and then to the Parking Slots by Shuttle
  • Each Parking level is served with independent shuttles
  • Parking of all cars at Ground Level
  • This system can be used for both above ground level as well as under ground

Features

  • Fully Automated Parking System
  • Each car is checked for the sizes at Parking Room
  • Parking Guidance in each Parking room
  • Turn Table for easy drive out
  • Multiple Elevators can be provided to minimize cycle time
  • Customized design as per site conditions

Technical Parameters

Lifting Motor11.0 / 30.0 KW
Shuttle Motor0.75 – 2.2 KW
Lifting speed40-60 m/minute
Shuttle travel speed40-60 m/minute
Pallet transfer Speed20-30 m/minute
Turn Table Speed2 RPM
OperationTouch Screen + RFID card
Power SupplyAC 400 V / 50 Hz (Three Phase, 5 Wire)
Entry / ExitAuto Doors

Car Dimensions

Length (mm)5200
Width (mm)2200
Height (mm)2000
Weight (kg)2300

Note: Customized design according to car sizes available

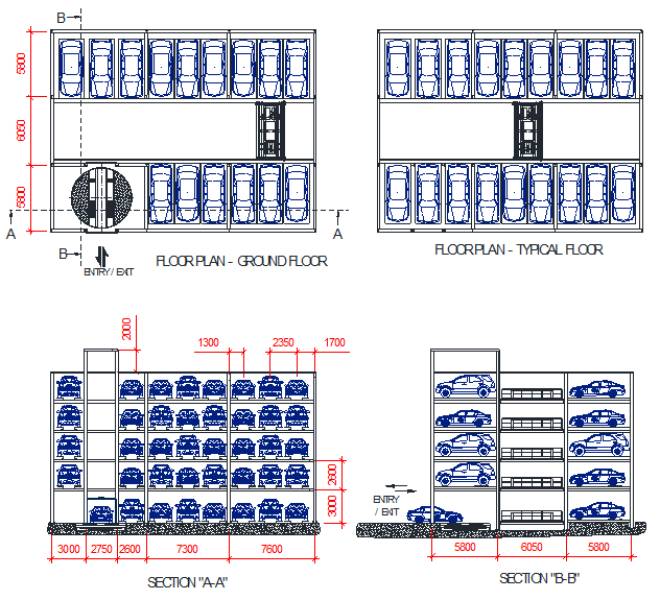

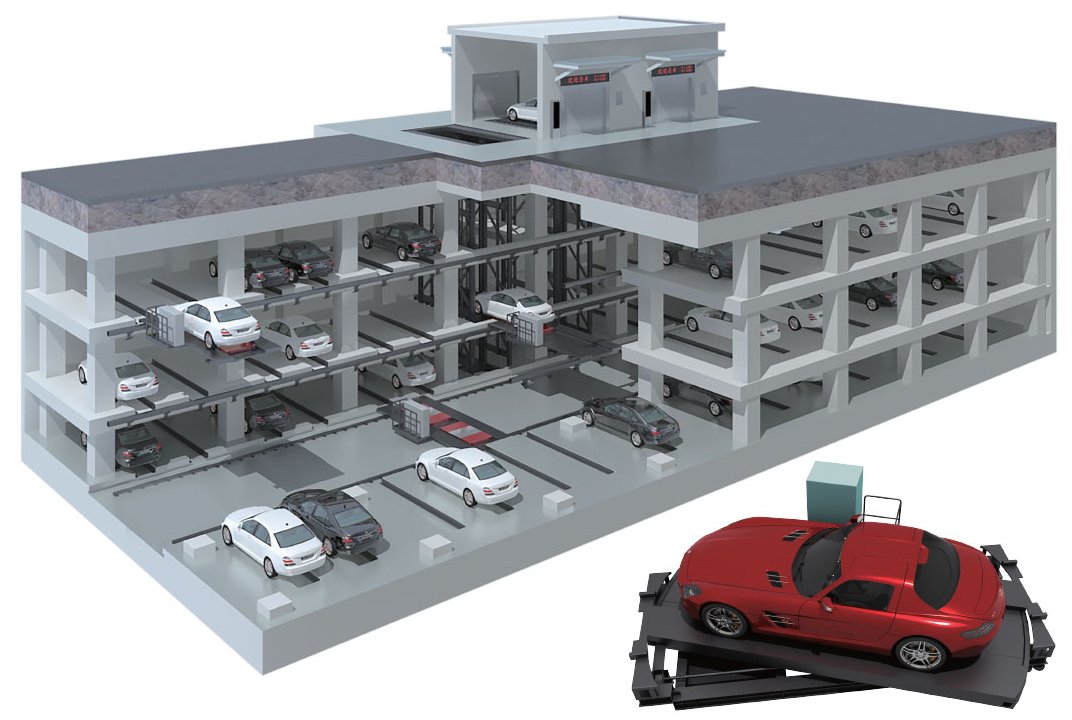

Lootah Shuttle Parking With Robot - LSPS 300 R

  • Robots used for transfer of Cars
  • Less cycle time compared to Shuttle with Pallets
  • Each Parking level is served with independent Robot with Shuttles
  • Parking of all cars at Ground Level
  • This system can be used for both above ground level as well as under ground

Features

  • Fully Automated Parking System
  • Each car is checked for the sizes at Parking Room
  • Parking Guidance in each Parking room
  • Turn Table for easy drive out
  • Multiple Elevators can be provided to minimize cycle time

Technical Parameters

Lifting Motor11.0 / 30.0 KW
Shuttle Motor0.75 – 2.2 KW
Lifting speed40-60 m/minute
Shuttle travel speed40-60 m/minute
Pallet transfer Speed20-30 m/minute
Turn Table Speed2 RPM
OperationTouch Screen + RFID card
Power SupplyAC 400 V / 50 Hz, Three Phase, 5 Wire
Entry / ExitAuto Doors

Car Dimensions

Length (mm)5200
Width (mm)2200
Height (mm)2000
Weight (kg)2300

Note: Customized design according to car sizes available
